HT Camera TE-V06
Image sensor | 1/3” Sony Color CMOS Sensor |
H. Resolution | More than 960 and 1080 TV Lines ( HD quality ) |
Video output | Composite Video, 1 Vp –p 75Ω |
S/N ratio | more than 50 db (AGC off) |
Shutter speed | 1/25-1/30000 |
Min illumination | 0.2 Lux (F1.2,30 IRE ) /0.001 Lux (F1.2 , X 128 DSS) |
Power source | DC12V |
Power consumption | Max . 6W |
![HT-camera](https://temax.in/wp-content/uploads/2020/04/HT-camera.png)
Air Cooled
Staright Camera
Material | SS 316L |
Furnace Temaperature | Upto 1800’c |
Tube Length | 600 mm |
Cooling system | Vortex air/ Normal Air |
Furnace wall thickness | 200- 400mm |
Pressure | 4 Bar |
Air Flow | 18 CFM |
Temperature | <35’C |
Quality | Filtered Industrial air |
![ar-2-prd-details-400x339-grey](https://temax.in/wp-content/uploads/2020/05/ar-2-prd-details-400x339-grey.png)
Air Cooled
Inclined Camera
Material | SS 316L |
Furnace Temaperature | Upto 1800’c |
Tube Length | 700 mm |
Cooling system | Vortex air/ Normal Air |
Furnace wall thickness | 200- 400mm |
Pressure | 4 Bar |
Air Flow | 18 CFM |
Temperature | <35’C |
Quality | Filtered Industrial air |
![TE-V06C-AR-400x339](https://temax.in/wp-content/uploads/2020/05/TE-V06C-AR-400x339-1.png)
Water Cooled
Staright Camera
Material | SS 316L |
Furnace Temaperature | Upto 1800’c |
Tube Length | 600 mm |
Furnace wall thickness | 200- 400mm |
Cooling system | Normal Water (TDS< 200 PPM) |
Water flow | 15 LPM |
Air Flow | 6 CFM |
Temperature | <35’C |
Quality | Filtered Industrial air |
![st-wr-400x339](https://temax.in/wp-content/uploads/2020/05/st-wr-400x339-1.png)
Water Cooled
Inclined Camera
Material | SS 316L |
Furnace Temaperature | Upto 1800’c |
Tube Length | 700 mm |
Furnace wall thickness | 200- 400mm |
Cooling system | Normal Water (TDS< 200 PPM) |
Water flow | 15 LPM |
Air Flow | 6 CFM |
Temperature | <35’C |
Quality | Filtered Industrial air |
![wr-inclined-400x339](https://temax.in/wp-content/uploads/2020/05/wr-inclined-400x339-1.png)

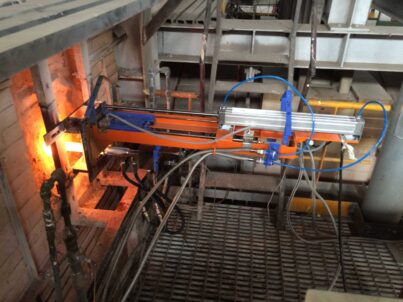

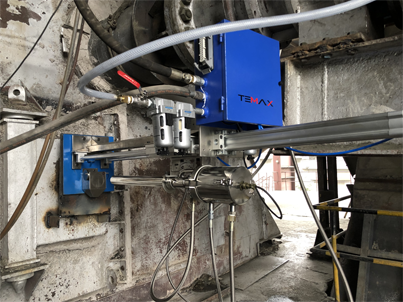

Full Retraction System
Retraction advantages
- Fully Stainless Steel Frame
- High Temperature manage Cylinder
- Linear Guide system
- Back up Air Reserve tank
- Forward, reverse sensors
- Air/water electronic flow sensor
- SS shutter to prevent back fire
- All in one 24 pin connector

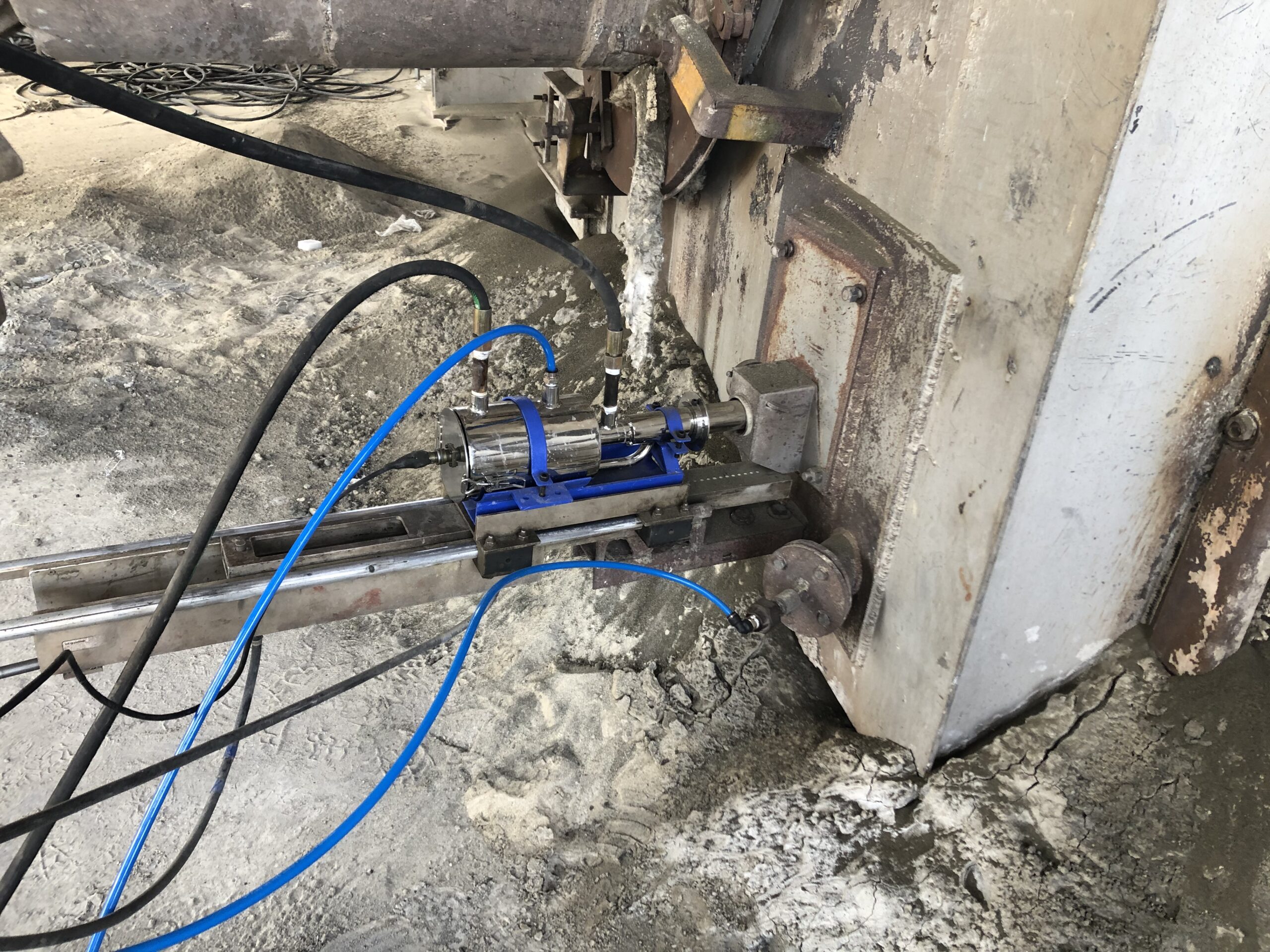

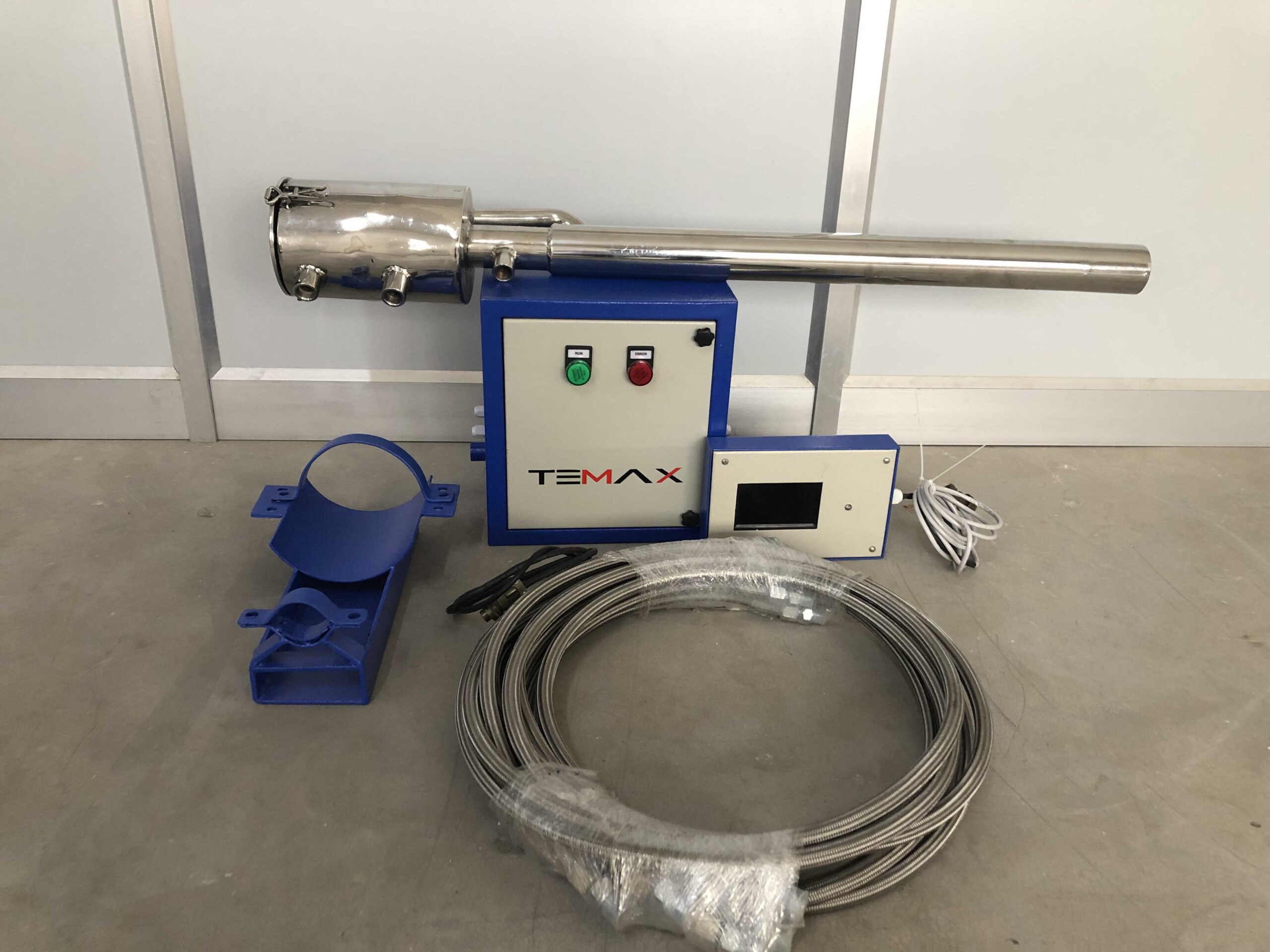

Retro Fit System
Retrofit advantages
- Suitable to existing Retraction System
- MS Base Mount
- Mini control panel with dual SMPS
- Mini on site LED monitor
- Electronic Flow sensor
- A/D- D/A convertors
- Cost effective
Customized
- Cyclone Inspection Camera
- Roller Inspection Camera
- Ambient Admosphire Cameras
